Magnetic plate separator

liquidsfor the food industrystainless steel

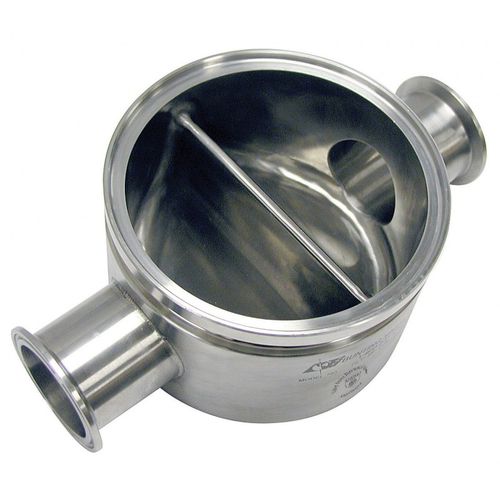

Plate Style Magnetic Liquid Traps Single Plate Magnet and Dual Plate Magnet Liquid Traps effectively remove ferrous particles from viscous and fibrous liquids and liquids containing larger suspended solids. These traps are designed to direct contaminants against a magnetic plate and into a deep magnetic field where they are captured and protected from the wiping action of the liquid flow. A deflector creates gradual change in the direction of flow to agitate the product and expose contaminants that would otherwise be blocked by suspended solids. 400 Stainless steel tapered live step is standard. 316 Stainless steel is available. Finishes available are: food, sanitary and 3-A. Standard high temperature and high intensity rare earth magnets. Standard 1″ – 4″ inlet with 1/2″ sizes available, and special sizes upon request. All fittings available. For the Food Industry
