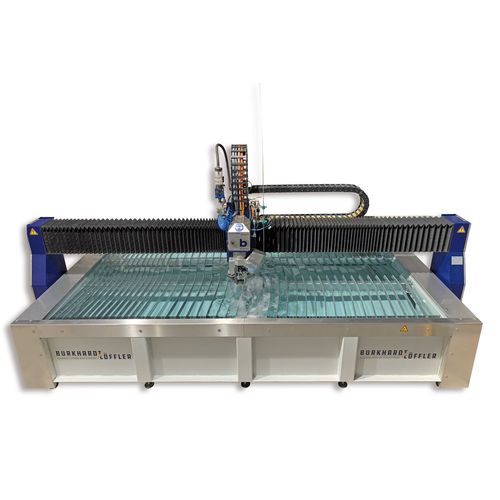

Waterjet cutting machine

for plasticsfor marblefor granite

High-pressure cutting Waterjet cutting is the perfect solution for complex cuts in ceramic, marble, granite, glass, plastics and engineered stone. The rotating and swivelling head enables precise mitre cutting and the fully-automatic sensors compensate for differences in material thickness. To achieve higher accuracies in the waterjet process, we have developed a system for electronic measurement and calibration of the waterjet head. The calibration device provides measuring accuracies of 0.05mm at each machine level. Deviations can be measured both mechanically and by a sophisticated technical compensation in the software. The measurement is carried out with every new commissioning of our water jet machines and as part of regular maintenance. For high-precision mitre cuts in particular, the measurement will ensure that a consistently high level of quality is achieved. Technical data Work area: - 4000 x 2200 mm High-pressured pump: - 30–100 kW Working pressure: - 4100 bar Feed rate: - X, Y 50 m/min
