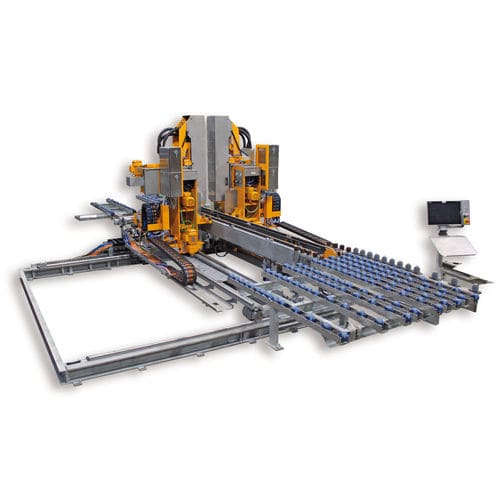

CNC drilling and milling machine BF 2000horizontalfor stone
Add to favorites
Compare this product
Characteristics
- Type
- CNC
- Structure
- horizontal
- Applications
- for stone
- Drilling diameter
Min.: 6 mm
(0.24 in)Max.: 14 mm
(0.55 in)
Description
Do you produce architectural cladding from natural stone or concrete? We have the right drilling machine for all types of common anchoring systems. The number of drilling and milling heads can be adjusted to your requirements.
Options
• Horizontal drilling and milling of anchor pockets
• Horizontal and vertical drilling
• Drilling for undercut anchors Fischer and Keil Systems
• Precast panel drilling
• Spot kerfs and continuous kerfs
Technical data
Workpiece thickness: - 20-100 mm
Workpiece lenght: - 290-2200 mm
Workpiece width: - 290-2200 mm
Workpiece weight max.: - 400 kg
Drill diameter: - 6-14 mm
Drill depth: - 40-150 mm
Drill motor: - 2.2 kW
RPM: - 4000-6000 U/min
Feed rate side adjustment: - 12 m/min
Feed rate width adjustment: - 12m/min
Feed rate material intake: - 30 m/min
