Buffer storage system WSR 9000

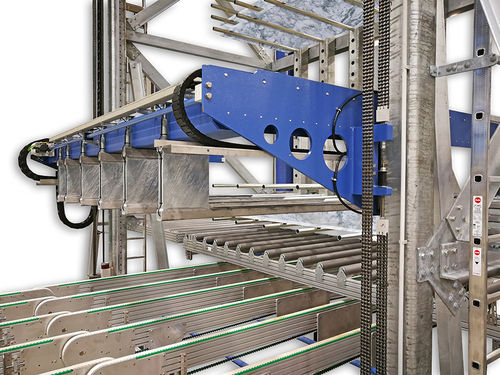

Fully Automatic Workpiece Buffering and Stacking System The next step towards uninterrupted and streamlined production Our fully-automatic Workpiece Buffering and Stacking System sets a standard for the storing and sorting of in-process and/or finished workpieces. The innovative construction with two linear guideways and chain drive, for the first time, provides greater economy by buffering workpieces within the continuous processing line itself. Differing cycle times for a workpiece before and after a machine process can be brought into balance. In short, machine production for the entire line is increased with a more flexible workpiece flow. Options • Lagersoftware • Interface for Production and Materials Management • Integration of an Existing Handling Technology Technical data Workpiece capacity: - 100 pieces Workpiece size max.: - 3.600 mm x 1.500 mm Workpiece size min.: - 540 mm x 40 mm Cycle time per workpiece max.: - 60 sec. Total load carrying capacity: - 16,000 kg Load carrying capacity per shelf: - 400 kg Total height approx.: - 9,000 mm
