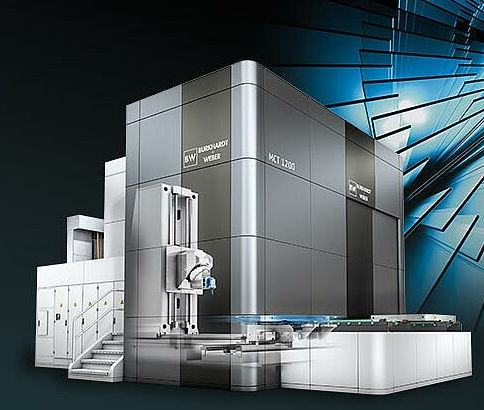

CNC turning-milling center MCT series

universal3-axisdrilling

The five MCT machining centres are designed specifically for multitasking applications. Milling, drilling, turning – all on one machining centre with high power density thanks to NC-controlled tilting spindle, strong turning tool holder and fast-turning torque table. Integrated horizontal and vertical turning replaces use of multiple additional lathes. Maximum efficiency through flexibility. BW's own rotary tables with powerful torque motors for turning and generously dimensioned holding brakes for milling and drilling permit demanding steel and cast-iron machining operations with maximum cutting performance. All BW options of other series are also available for the MCT series. The MCT machining centres can also be operated together with other BW machining centres in one system, because the same pallets are used. Made by BURKHARDT+WEBER. Powerful and generously-supported horizontal/vertical head. To accommodate the optional turning tool holder, the swivel head is equipped as standard with a sturdy four-point clamping system. Assembled by highly experienced employees. Strictest quality controls. 24-hour load spectrum on BW test stand with programmable counter-loads. NC-controlled as HVP positioning head or as a fully-fledged 5-axis HVC swivel head. Each with 8,000 rpm an up to 42 kW / 2,000 Nm thanks to two gear stages. Swivel time 2 s at full speed. Turning tools are automatically loaded from the tool magazine into a special turning tool holder. Turning tool holder with quadruple hydraulic clamping on the spindle unit.
