Compression load cell 8526
button typestrain gauge1 mV/V

Compression load cell - 8526 - burster präzisionsmesstechnik gmbh & co kg - button type / strain gauge / 1 mV/V
Compression load cell - 8526 - burster präzisionsmesstechnik gmbh & co kg - button type / strain gauge / 1 mV/V
Add to favorites
Compare this product

Characteristics

Type
compression
Form
button type
Technology
strain gauge
Output signal
1 mV/V
Other characteristics
stainless steel, compact, small, with overload protection, IP64
Rated force

Max.: 1,000,000 N

Min.: 0 N

Description

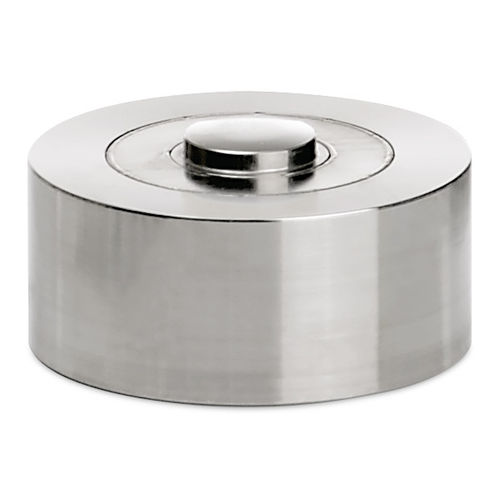

Compression load cell - 8526 Thanks to its compact shape and three fixing holes on its underside, the 8526 compression load cell can be used in a variety of applications. With its wide choice of measuring ranges from 0 ... 100 N up to 0 ... 1 MN, it really can cover a wealth of measurement tasks, from the laboratory to use in heavy industry. The integral load button provides an easy and reliable means of applying the force to be measured. Angle errors in the load application with a deviation from the measurement axis of up to 3° have only a minor influence on the measurement signal. For ideal measurement accuracy, the load cell should be mounted on a surface that has been ground and has a hardness of at least 60 HRC. The model 8526 load cell is designed with an internal elastic membrane, to which strain gages are attached. When a compressive load is applied to the load cell, the membrane is elastically deformed and transfers its tension to the strain gages. These in turn respond with a proportional change in their ohmic resistance, which can be evaluated using a suitable instrumentation amplifier or display device. FEATURES: Measuring ranges from 0 ... 100 N to 0 ... 1 MN Extremely compact design For static and dynamic measurements Three threaded holes on bottom for easy mounting and cable suitable for drag chain application Protection class IP64 Relative non-linearity: ≤ ±0.1 % F.S. Standardized output signal burster TEDS optionally available
