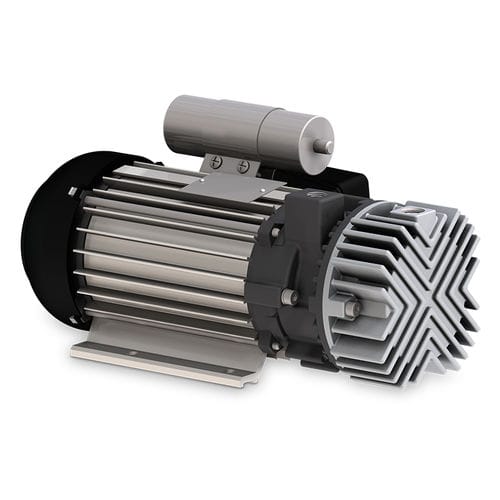

Rotary vane vacuum pump Seco SV 1005 D
dryprecisionair-cooled

rotary vane vacuum pump
rotary vane vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
rotary vane
Lubrication
dry
Applications
precision
Other characteristics
compact, air-cooled, direct-drive
Ultimate vacuum

150 mbar
(2.18 psi)

Flow rate

5 m³/h, 6 m³/h
(176.57 ft³/h, 211.89 ft³/h)

Power

0.14 kW, 0.16 kW
(0.19 hp, 0.22 hp)

Operating temperature

56 °C, 57 °C
(133 °F, 135 °F)

Length

272 mm
(11 in)

Width

147 mm
(5.79 in)

Height

143 mm
(5.63 in)

Noise level

68 dB, 72 dB

Weight

6 kg
(13.23 lb)

Description

The Dry Solution for Handling Applications Compact Direct-drive construction Reliable Robust construction, proven performance, self-lubricating vanes, no operating fluids High performance High uptime, high performance vanes
