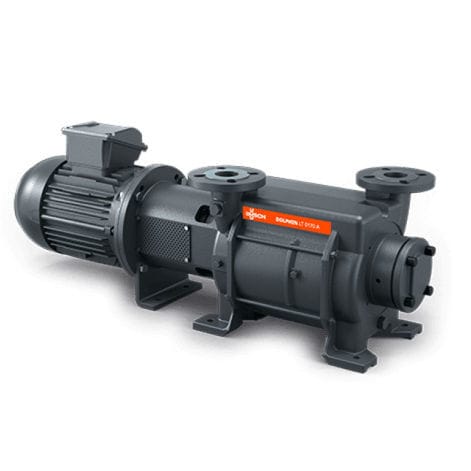

Centrifugal vacuum pump Dolphin LT 0220 Aliquid ringlubricatedtwo-stage
Add to favorites
Compare this product
Characteristics
- Technology
- liquid ring, centrifugal
- Lubrication
- lubricated
- Number of stages
- two-stage
- Applications
- gas
- Other characteristics
- compressor, modular
- Ultimate vacuum
33 mbar
(0.48 psi)- Flow rate
203 m³/h, 230 m³/h
(7,168.88 ft³/h, 8,122.37 ft³/h)- Power
5.5 kW, 7.5 kW
(7.48 hp, 10.2 hp)- Length
1,083 mm
(43 in)- Width
330 mm
(12.99 in)- Height
380 mm
(14.96 in)- Noise level
70 dB, 71 dB
- Weight
188 kg
(414.47 lb)
Description
Robust Principle, Modern Design
Robust
Proven technology, durable two-stage construction, corrosion-free stainless steel impeller, direct flange-mounted motor, no base frame required, integrated flow channel
Reliable
Extremely high vapor and particle tolerance, optimized gas flow
Flexible
Choice of cast iron (EN-GJL-200) or 316 grade stainless steel material housings, ATEX-certified version available (Cat 1G (i) 2G (o) IIC T4), operating fluids other than water possible
