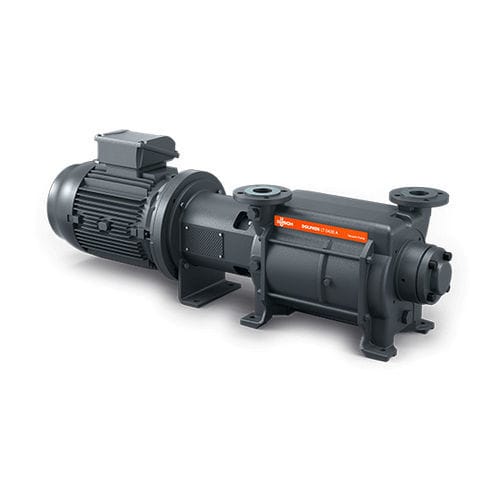

Liquid ring vacuum pump Dolphin LT 0320 Alubricatedtwo-stagegas
Add to favorites
Compare this product
Characteristics
- Technology
- liquid ring
- Lubrication
- lubricated
- Number of stages
- two-stage
- Applications
- gas
- Other characteristics
- compact, compressor, cast iron
- Ultimate vacuum
33 mbar
(0.48 psi)- Flow rate
255 m³/h, 320 m³/h
(9,005.24 ft³/h, 11,300.69 ft³/h)- Power
7.5 kW, 11 kW
(10.2 hp, 14.96 hp)- Length
1,208 mm
(48 in)- Width
396 mm
(15.59 in)- Height
432 mm
(17.01 in)- Noise level
72 dB, 73 dB
- Weight
242 kg
(533.52 lb)
Description
Robust Principle, Modern Design
Robust
Proven technology, durable two-stage construction, corrosion-free stainless steel impeller, direct flange-mounted motor, no base frame required, integrated flow channel
Reliable
Extremely high vapor and particle tolerance, optimized gas flow
Flexible
Choice of cast iron (EN-GJL-200) or 316 grade stainless steel material housings, ATEX-certified version available (Cat 1(i/o) IIC T4), operating fluids other than water possible
