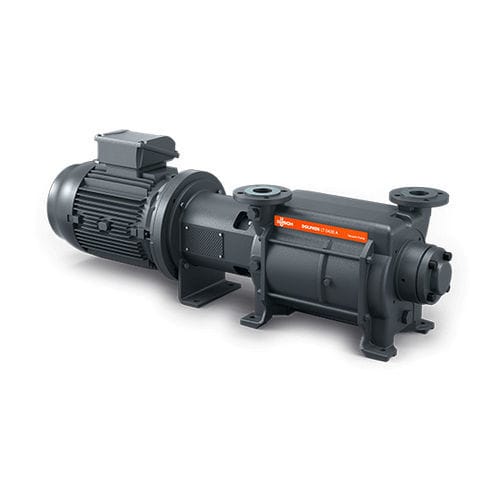

Liquid ring vacuum pump Dolphin LT 0510 Alubricatedtwo-stagemotor
Add to favorites
Compare this product
Characteristics
- Technology
- liquid ring
- Lubrication
- lubricated
- Number of stages
- two-stage
- Applications
- gas, motor
- Other characteristics
- compact, compressor, stainless steel, cast iron
- Ultimate vacuum
33 mbar
(0.48 psi)- Flow rate
430 m³/h, 515 m³/h
(15,185.31 ft³/h, 18,187.05 ft³/h)- Power
11 kW, 15 kW
(14.96 hp, 20.39 hp)- Length
1,416 mm
(56 in)- Width
396 mm
(15.59 in)- Height
478 mm
(18.82 in)- Noise level
72 dB, 73 dB
- Weight
324 kg
(714.3 lb)
Description
Robust Principle, Modern Design
Robust
Proven technology, durable two-stage construction, corrosion-free stainless steel impeller, direct flange-mounted motor, no base frame required, integrated flow channel
Reliable
Extremely high vapor and particle tolerance, optimized gas flow
Flexible
Choice of cast iron (EN-GJL-200) or 316 grade stainless steel material housings, ATEX-certified version available (Cat 1(i/o) IIC T4), operating fluids other than water possible
