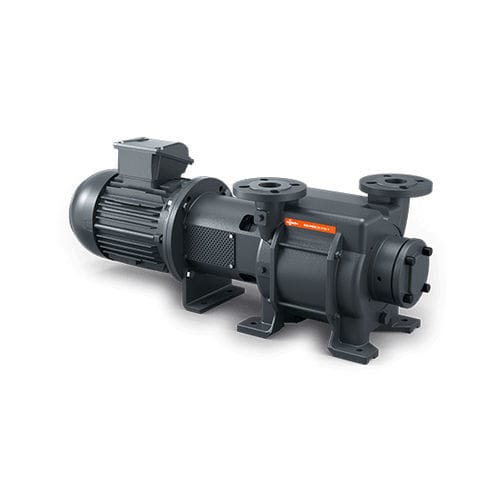

Liquid ring vacuum pump Dolphin LM 0100 A lubricatedsingle-stagemotor
Add to favorites
Compare this product
Characteristics
- Technology
- liquid ring
- Lubrication
- lubricated
- Number of stages
- single-stage
- Applications
- gas, motor
- Other characteristics
- compressor, stainless steel, cast iron
- Ultimate vacuum
130 mbar
(1.89 psi)- Flow rate
98 m³/h
(3,460.84 ft³/h)- Power
2.2 kW, 3 kW
(2.99 hp, 4.08 hp)- Length
811 mm
(32 in)- Width
330 mm
(12.99 in)- Height
329 mm
(12.95 in)- Noise level
70 dB, 71 dB
- Weight
110 kg
(242.51 lb)
Description
Robust Principle, Modern Design
Robust
Proven technology, durable single-stage construction, corrosion-free stainless steel impeller, direct flange-mounted motor, no base frame required, integrated flow channel
Reliable
Extremely high vapor and particle tolerance, optimized gas flow
Flexible
Choice of cast iron (EN-GJL-200) or 316 grade stainless steel material housings, ATEX-certified version available (Cat 1(i/o) IIC T4), operating fluids other than water possible
