Circular knitting machine IDEA
computerizedindustrial

Circular knitting machine - IDEA  - Busi Srl. - computerized / industrial
Circular knitting machine - IDEA  - Busi Srl. - computerized / industrial
Add to favorites
Compare this product


Characteristics

Type
circular
Other characteristics
computerized
Domain
industrial
Working width

150 cm
(59 in)

Description

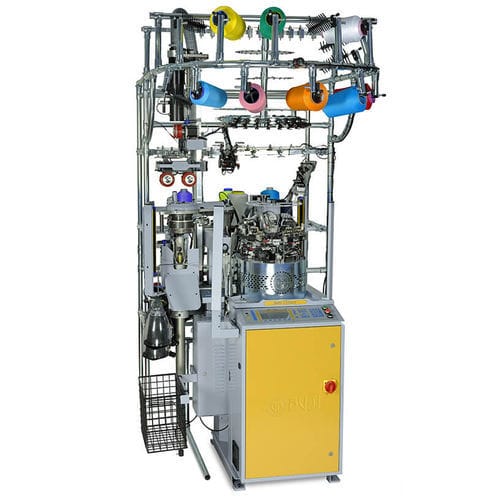

BUSI IDEA is a high production single cylinder sock machine with latch needles in the dial to enable it to produce true rib socks for men and children and it is provided with full electronic control. The machine is available in two versions, BUSI IDEA and BUSI IDEA S. The features of the two versions are listed in the table below. Diameters: 3", 3¼", 3½", 3 ¾", 4" Needles: 72 - 320 Available needles gauges: 24, 36, 48, 54, 70 Max. mechanical speed 300 rpm Speed in heels 260 courses pm Weight 420 kg Technical dimensions cm 130 x 150 x 235 Two feeds (also available with one feed only, in the version "S") Stitch adjustment by step motors Automatic stiffening on each step motor Cylinder motion by Brushless motor Possibility to store several articles in memory Possibility to run a sequence of up to 4 different articles. Possibility to modify the programs and/or the machine parameters during knitting Programs are loaded through a USB stick or through the network UPS power backup system Photocell dropout control Automatic lubrication All shafts work on roller bearings RIMAGLIO device for the Classic Linking Clamp for bare lycra Device for the second elastic yarn Device for footie sock Device for 3D sock Storage feeders Positive yarn feeders mod. ULTRAFEEDER (BTSR) BTSR yarn flow sensors Anti-twist device Suction fan Vertical or horizontal yarn rack Ethernet network connection (wired or wireless) Production monitoring programme (SK-MON) Pattern and article development programme (ART-GEN)
