Falling film evaporator FAFI

vacuumthermalshell and tube

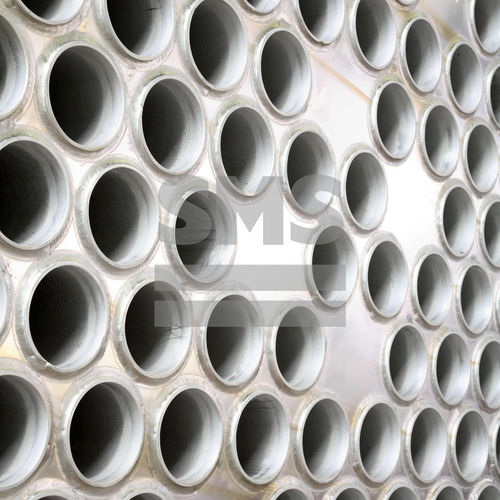

The falling film principle requires an even distribution of the feed liquid. To achieve this distrubution one or more distribution trays are located in the top head of the evaporator over the complete tube sheet. Our proven distribution system makes sure that the inner surface of each individual tube is properly wetted. The liquid film moves down the tubes by gravity force. Heat applied through the tube wall effects boiling-off the light fraction from the film. The picture shows a co-current operating evaporator with vapour and liquid leaving the bottom of the evaporator into the separator vessel.
