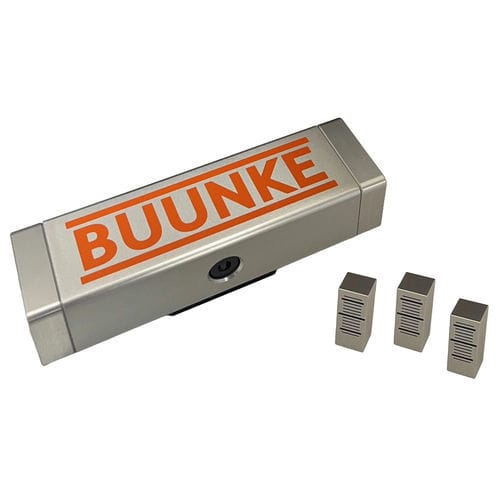

Laser alignment tool PAL-3RST

pulleyfor belt driveIP40

The PAL-3RST is the suitable pulley and belt alignment tool for achieving accurate alignments. Easily operated by just one person, this easy-to-use device emits a laser beam that is projected onto 3 reference targets to fulfill the desired alignment. • Highly visible red laser beam • Targets swiftly identifying misalignments • Magnet mounted laser unit & targets • Product-protecting storage and transport case Benefits of an aligned belt transmission: • Lower energy consumption • Longer lifetime of machine components • Reduced unplanned downtime Technical Data Laser Unit • Wavelength :635 nm • Optical Output Power : < 2.5 mW • Operating Temperature : 0°C to 40°C (32°F to 104°F) • Storage Temperature :-10°C to 70°C (14°F to 158°F) • Safety Class : Class 1 laser product according to DIN EN 60825- 1:2015-07 • Accuracy Angle : < 0.2° • Accuracy Offset : < 0.5mm/m • Measuring Distance :500mm – 3000mm • Control : Push button switch ON/OFF • Power Supply :2 AAA alkaline batteries • IP Rating : IP 40 • Operating Time :±30 hours continuous operation • Mounting Method : Magnets • Dimensions : Approx. 38 x 41 x 144 mm (1 1/2"x 1 39/64" x 5 43/64") • Weight : Approx. 0,31 Kg ( 0,7 lb.) with batteries • Housing Material : Anodized aluminum Targets • Quantity : 3 • Mounting Method : Magnet • Dimensions : Approx. 15 x 15 x 38 mm (19/32" x 19/32" x 1 1/2") • Weight :Approx. 25 g (0,9 oz) • Material : Anodized aluminum
