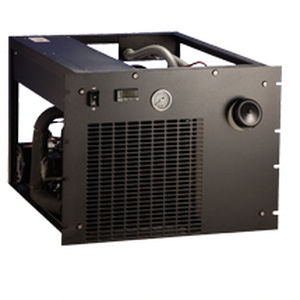

Liquid chiller MC0 series

rack

The BV Thermal Systems Rack-Mounted Chiller is mountable in a 19-inch rack thereby saving desktop or floor space and allows for stacking of related devices. The Rack-Mounted Chiller offers continuous cooling with a temperature range from +5° to +27°C and feature an easy front fill reservoir, auto-tuning, PID temperature controller and a liquid filled pressure gauge. With environmentally friendly CFC refrigerant our Rack-Mounted Chiller features easy to use time tested components such as an adjustable temperature high & low alarm and a 100 million cycle solenoid valve. With the largest selection of options in the industry, the Rack-Mounted Chiller may be designed and manufactured to your exact requirements and specifications. Our Rack-Mounted Chiller is engineered for superior performance and manufactured for years of reliable service. Rack-Mounted Chiller Features •Full featured PID controller with Auto-tuning - - •Seamless polyethylene tank with easy fill 3″ port •One positive displacement pump on 60Hz - - •Liquid filled pressure gauge •Internal pressure/flow adjustment - - •Adjustable temperature high & low alarm •Separate electrical enclosure - - •100 million cycle solenoid valve •Reservoir drain with ball valve shut-off - - •Minimized thread seals
