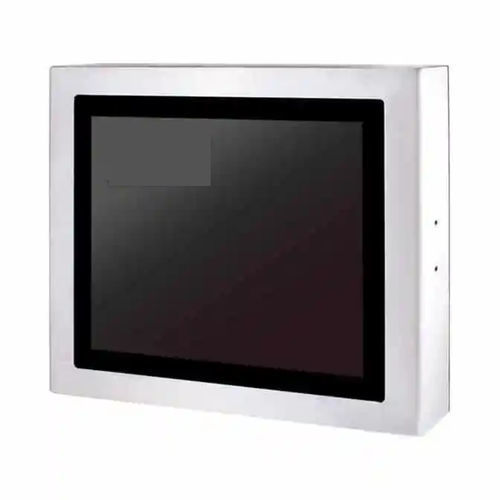

TFT-LCD monitor IM150 series

with PCT touch screen5-wire resistive touch screen15"

Available in ambient or wide temperature operational options High bright (up to 1600 cd/m2) or optical bonded options for sunlight readability 12 volt DC or 9V to 36V voltage input Colors - 16.2M Luminance - 300 cd/m2 Contrast Ratio - 2000:01:00 View Angle (H/V) - 176°/176° High Brightness (Optional) Resolution - 1024 x 768 Colors - 16.2M Luminance - 1000 cd/m2 Contrast Ratio - 2000:01:00 Viewing Angle (H/V) - 176°/176° Operation Temp. - 0 ~ 45°C Storage Humidity - 10 ~ 90%, non-condensing Mounting - VESA mount (100X100mm) & Yoke mount Dimension (WxHxD) - 438 x 335 x 63 mm Weight - TBD - - - - - Optional P/N: 302A170051 - 1600 cd/m2 15” LCD panel 1024 x 768 P/N: 2351206003 - Full IP65 Waterproof Power adaptor with European power cord ( 60W / 90 ~ 295V AC input / 12V DC output) P/N: 2352406011 - Full IP65 Waterproof Power adaptor with European power cord (60W / 90 ~ 295V AC input / 24V DC output) P/N: 2351206004 - Full IP65 Waterproof Power adaptor with US power cord ( 60W / 90 ~ 295V AC input / 12V DC output) P/N: 2352406012 - Full IP65 Waterproof Power adaptor with US power cord (60W / 90 ~ 295V AC input / 24V DC output) P/N: 2320000001 - Optical Bonding P/N: 309M106004 - DC in 9 ~ 36V P/N: 3120600002 - RS232 touch screen for IM150RS03/04, IM170RS03/04, IM190RS03/04
