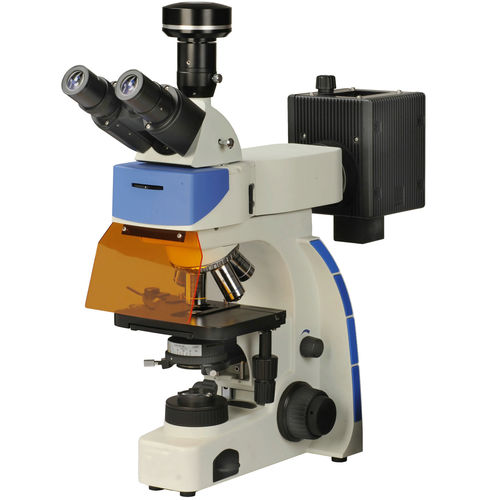

Fluorescence microscope BFM series

opticalfor researchbiomedical

BFM-2001 series reflected fluorescence microscopes are used for fluorescence microscopy and transmitted bright field observation. They are the ideal instruments in biology, cytology, oncology, geneticist, immunology etc. It is the ideal instrument in biology, cytology, oncology, genetics, immunology, etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc. Features ▲ With wide field eyepieces, plan achromatic objectives and fluorescence objectives, the field of view is widely and clear ▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm ▲ 6V 20W halogen lamp transmission illumination with brightness control. 100W high voltage mercury lamp, with outside power supply unit Eyepiece Wide field WF10X(¦µ22mm) Objective Infinity plan achromatic objectives PL 4X/0.10 (Work distance): 19.8 mm PL 10X/0.25 (Work distance): 5.0 mm PLF L40X/0.85£¨spring£©(Work distance): 0.42mm(No magnification spherochromatic aberration ) PL 100X/1.25(Spring, oil) (Work distance): 0.36mm Eyepieces tube Trinocular, Inclination of 30˚. Epi-fluorescent illumination system Power supply unit, 110V or 220V can be selected. Mercury lamp is 100W/DC Turnplate Epi-fluorescence illuminator (UV.V.B.G filters system) Focus system Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm. Nosepiece Quintuple(Backward ball bearing inner locating) Stage Double layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm)
