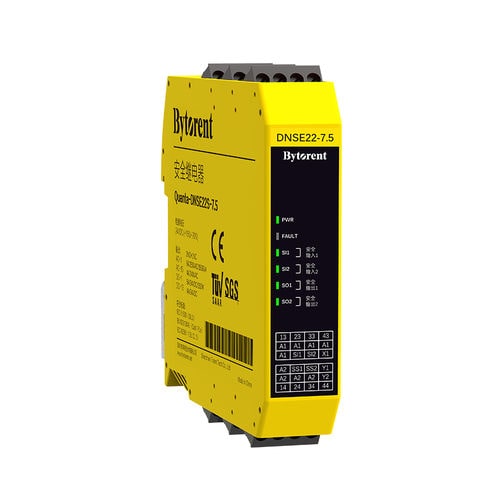

Safety relay Quanta-DNSE22S-7.5
2 NOAC/DCemergency stop

Safety relay - Quanta-DNSE22S-7.5 - Bytorent Technology Co., Ltd. - 2 NO / AC/DC / emergency stop
Safety relay - Quanta-DNSE22S-7.5 - Bytorent Technology Co., Ltd. - 2 NO / AC/DC / emergency stop
Safety relay - Quanta-DNSE22S-7.5 - Bytorent Technology Co., Ltd. - 2 NO / AC/DC / emergency stop - image - 2
Safety relay - Quanta-DNSE22S-7.5 - Bytorent Technology Co., Ltd. - 2 NO / AC/DC / emergency stop - image - 3
Add to favorites
Compare this product


Characteristics

Measured/monitored value
safety
Contact configuration
2 NO
Network
AC/DC
Applications
emergency stop
Mounting
DIN rail
Reset
automatic reset, manual reset
Norms
IEC, SIL
Other characteristics
time delay, multichannel
Tripping current

4 A, 6 A

Trigger voltage

24 V, 240 V, 250 V

Description

Supports emergency stop switches, interlock switches, and passive switch inputs. Precise control, can be adapted to different safety functions through the function DIP switch. Dual-channel, single-channel-dual-channel, single-channel-single-channel three modes are optional. Independent channel status signal output, can be used for alarm. Provides rich fault diagnosis information through the change of indicator lights. Delay dialing setting, adjustable delay range of 0-7.5 seconds, in units of 0.5 seconds, with a total of 15 gears.
