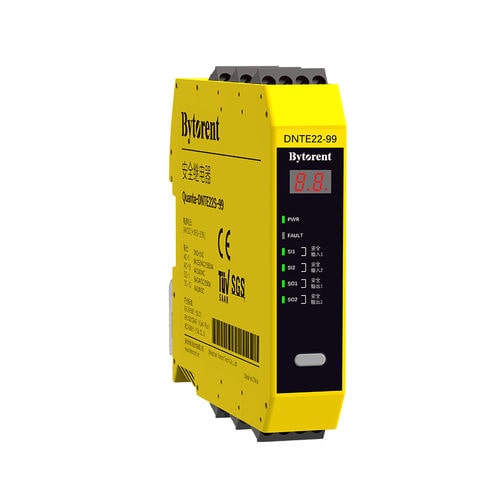

Safety relay Quanta-DNTE22S-992 NOAC/DCemergency stop
Add to favorites
Compare this product
Characteristics
- Measured/monitored value
- safety
- Contact configuration
- 2 NO
- Network
- AC/DC
- Applications
- emergency stop
- Mounting
- DIN rail
- Reset
- automatic reset, manual reset
- Norms
- IEC, SIL
- Other characteristics
- time delay, multichannel
- Tripping current
4 A, 6 A
- Trigger voltage
24 V, 240 V, 250 V
Description
Supports emergency stop switches, interlock switches, and passive switch inputs
Precise control, can be adapted to different safety functions through the function DIP switch.
Dual-channel, single-channel-dual-channel, single-channel-single-channel three modes are optional.
Independent channel status signal output, can be used for alarm.
Provides rich fault diagnosis information through the change of indicator lights.
The delay range is 0-99 seconds, with adjustable accuracy of 0.1 seconds between 0-10 seconds and 1 second between 10-99 seconds
