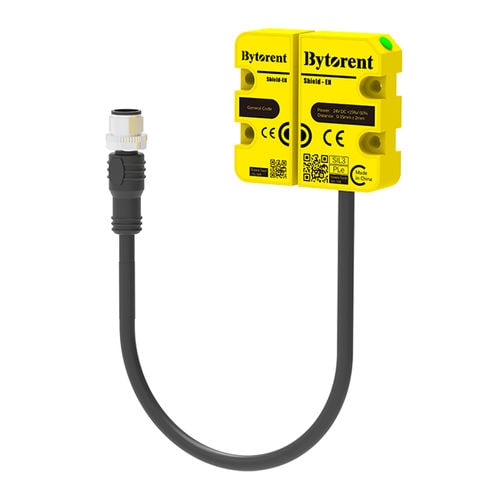

Multipole switch Shield-ENQQM22L-M12-8harsh environmentsIP69Kmagnetic
Add to favorites
Compare this product
Characteristics
- Number of poles
- multipole
- Protection level
- harsh environments, IP69K
- Other characteristics
- safety, magnetic, compact
- Diameter / length
30 mm
(1.2 in)- Width
15.5 mm
(0.6 in)- Height
50 mm
(2 in)
Description
Shield-EN series non-contact safety switch is specially designed and developed for compact application, it can be used to monitor various safety doors, safety windows and motion safety components.
Designed according to ISO13849 and GB/T16855 and other related standards, and meets the requirements of functional safety standards
24VDC, magnetic type
2 sets of 1A capacity safety contacts and 2 sets of 300mA transistor PNP synchronous output
Wire length of 0.2m, with M12-8 core connector
Bright LED indication, clearly shows the current status
Support parallel or serial use
IP69K protection level, suitable for various harsh environments
