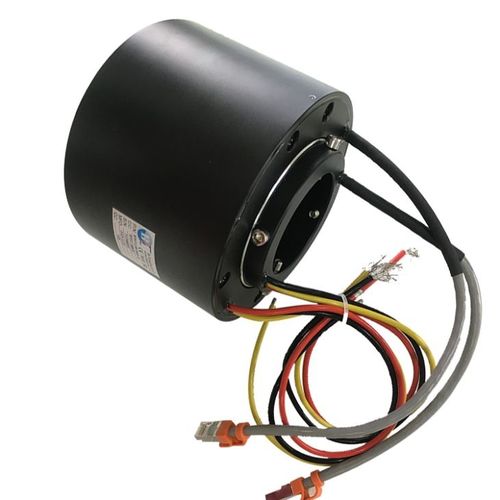

Electric slip ring BTH71158-0325

EthernetUSBmetal

100M Ethernet Slip Rings With RJ45 Connectors ByTune BTH71158-0325 Ethernet slip rings, 25A for power, 100M Ethernet, Utilizing high performance precious metal contacts, the Ethernet rotary joint features low electrical noise and Ethernet cables terminated with RJ45 connectors. Our Ethernet slip rings are available from 1 to 200 circuits... ByTune BTH71158-0325 Ethernet slip rings, 25A for power, 100M Ethernet, Utilizing high performance precious metal contacts, the Ethernet rotary joint features low electrical noise and Ethernet cables terminated with RJ45 connectors. Our Ethernet slip rings are available from 1 to 200 circuits power(current 2~20A ) and USB ,HDMI or other kinds of signal. Mainly used for transmitting Ethernet of 10M, 100M, 1000M BASE-T. Parameters: Mechanical： Inner Diameter 71mm Outer Diameter 158mm Height 107．80mm Working speed 300rpm Operating temperature -40℃~ +100℃ Contact material Precious metal Housing material AL IP Grade IP65 Electrical： Circuit 3+1+4 Current 25A for power, 100M Ethernet Voltage 300VAC./DC Dielectric strength ≥1000V@50Hz between each circuit Insulation resistance 1000MΩ@ 500VDC Electric noise ≤7mΩ Lead wire size 3/ 10AWG(5.36mm2); 1/Cat.7 RJ45 Lead wire length 300mm Working humidity 10%~85%RH CE certification YES Material RoHs compliant
