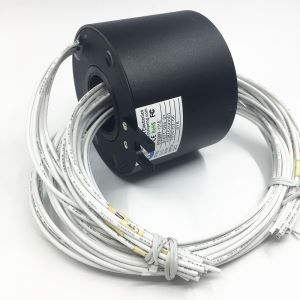

Through-bore slip ring BTH2586

for rotary tablessilverIP54

Rotary Though Bore Slip Rings Rotary though bore slip rings are suitable for high frequency and high data rate transmission and able to endure in hostile environments or at high speed and more. The center hole in the middle of the slip ring is designed to provide clearance for the rotating shaft and rotary joint to meet the... Rotary though bore slip rings are suitable for high frequency and high data rate transmission and able to endure in hostile environments or at high speed and more. The center hole in the middle of the slip ring is designed to provide clearance for the rotating shaft and rotary joint to meet the function of 360 °rotation of the equipment. ByTune slip rings are designed with consideration for all user experiences from ease of installation, ease of maintenance and optimal product life. Parameters Circuit 6,12,18,24 or more Rated Voltage 380VAC/240VDC Rated Current 10A,15A or 20A or more Insulation Resistance 1000MΩ 500VDC Lead Size UL,AWG16 tinning TEFLON for 10A; AWG14 tinning TEFLON for 15A and 20A;UL,AWG22 silver plated TEFLON Dielectric Strength 1000VAC@60Hz,60s between each circuit Electrical Noise <7mΩ Lead length Standard 300mm Operating Speed 1000rpm Working Temperature -40℃~+100℃ Contact Material Precious Metal IP Grade IP54 or higher
