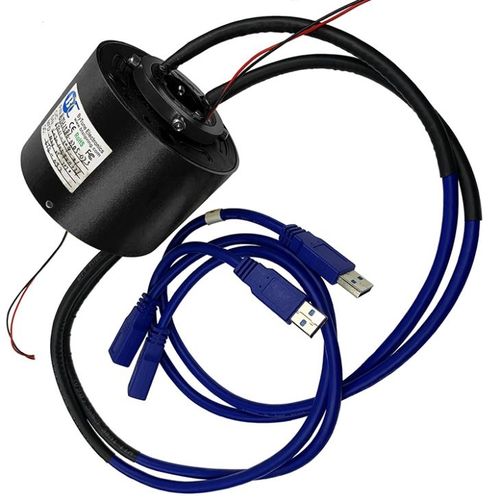

Electric slip ring

USBthrough-boresilver

USB Signal Through Bore Slip Rings ShareFacebookTwitterPinterestLinkedIn USB signal slip ring with 2 circuits for maximum 5.0Gbps (500MB/s) bandwidth transmission,the connectors of slip ring lead wire are the USB3.0 type, and the other 2 wires for 5A current. ID 25.4mm through bore for shaft mounting, flexible size designed as your requirements. Our USB slip ring incorporates low-wear, fiber brush contacts... USB signal slip ring with 2 circuits for maximum 5.0Gbps (500MB/s) bandwidth transmission,the connectors of slip ring lead wire are the USB3.0 type, and the other 2 wires for 5A current. ID 25.4mm through bore for shaft mounting, flexible size designed as your requirements. Our USB slip ring incorporates low-wear, fiber brush contacts that do not require lubrication. PARAMETERS Mechanical Working speed 1000rpm Operating temperature -40℃~ +100℃ Contact material Precious metal IP Grade IP 54 Electrical Circuit 2 for power, 2 for signal (other circuits optional) Current 5A,10A,20Aor combined rings to get higher current Voltage 380V,600V optional Dielectric strength ≥1000V@50Hz between each circuit Insulation resistance 1000MΩ@ 500VDC Electric noise ≤7mΩ Lead wire size 22AWG, 17AWG,14AWG,UL, color Teflon, silver or tin plated Lead wire length 300mm
