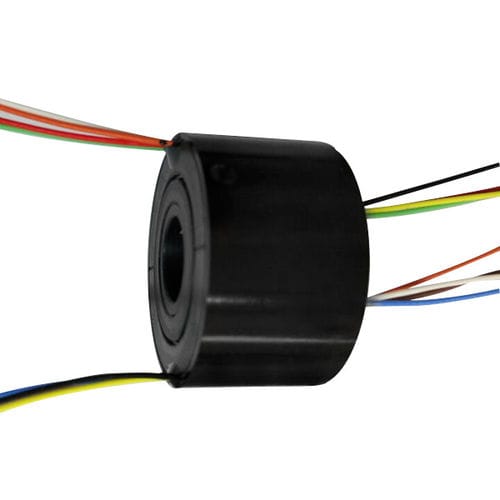

Electric slip ring

Ethernetthrough-holefor robots

Through Hole Slip Rings Keep Your Robots Moving From exploring underwater pipes to welding car plates, robots rely on reliable, durable slip rings to do their jobs. Our flexible, high quality slip rings meet the diverse needs of modern robot systems. Each unit adopts through hole technology, light weight, compact structure, with a variety of... From exploring underwater pipes to welding car plates, robots rely on reliable, durable slip rings to do their jobs. Our flexible, high quality slip rings meet the diverse needs of modern robot systems. Each unit adopts through hole technology, light weight, compact structure, with a variety of power and signal combination, ByTune through hole slip rings keep your robots moving, and meet your specific requirements. For more demanding environments, we offer rugged versions that resist extreme temperatures, shocks, vibrations and salt corrosion. It also offers high current and micro options. Mechanical Working speed ≤100rpm Operating temperature -40℃~ +100℃ Contact material Precious metal IP Grade IP54, IP56, IP65 or higher Electrical Circuit ≤ 24 Current 2A,5A,10A optional Signal Ethernet, Can-bus, RS485 ,USB Voltage ≤380V, 240V for signal Dielectric strength ≤1000V@50Hz between each circuit Insulation resistance 1000MΩ@ 500VDC Electric noise ≤7mΩ Lead wire size 22AWG, 17AWG,14AWG,UL, color Teflon, silver or tin plated Lead wire length 200mm
