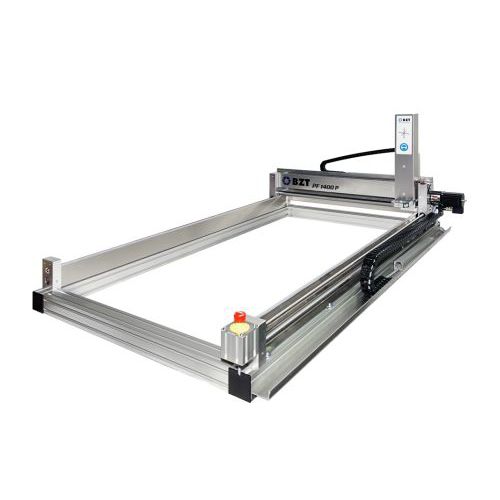

3-axis CNC milling machine PF 1400-P

universalbridge

Drive: 3 stepper motors 4.2 Amp, 3.0 N Ball screws, hardened and ground, in the X, Y, and Z axes Ball screws in the X- and Y-axis 16 x 10 mm in the Z-axis 16 x 5 mm Guides X- and Y-axis Ø25 mm, Z axis Ø16 mm, ground and surface hardened Travel speed up to 8,000 mm / min Travel way: approx X=670 x Y=1295 x Z=110 mm Clamping area: approx X=750 x Y=1400 mm Working area: approx X = 660 mm x Y=1180 mm Precision reference switch mechanically switching accuracy max. 0.02 mm Throat height: 130 mm Possible pushing long materials, height 30 mm Module frame for universal usage Milling motor consumption: Ø43 mm euro neck Dimensions: approx 1700 x 1030 x 610 mm Machine manual
