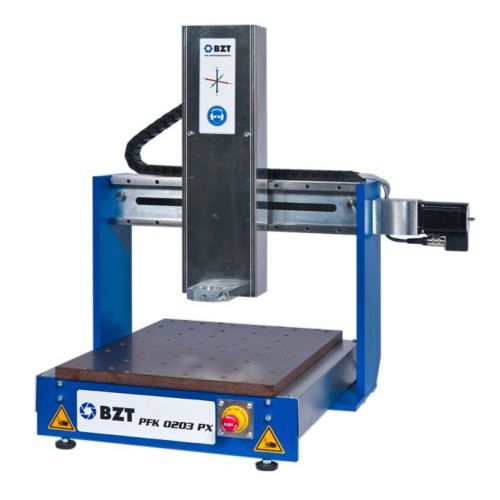

3-axis CNC milling machine PFK-0203-PX

universalbridge

Drive: 3 brand stepper motors 4.2 Amp Programmable resolution: 0.0025 mm Repeatability: ca + / - 0.02 to 0.03 mm (on fixed bearing side) Maximum Backlash: about 0.04 mm (using software adjustable to 0.000 mm) Linear guidings: cut X-and Y-axis and surface-hardened Spindles: 16 mm ball screw spindles Rapid traverse speed: 8000 mm / min Maximum operating speed: 4000 mm / min reference switch on all axes Clamping area: X = 375 x Y= 490 mm Processing area:: X = 340 mm Y = 260 mm Z = selection Passing height under Portal (at Z=130mm): 220 mm Passing height under Z-axis (at Z=130mm): about 205 mm Overall dimensions with motors: LxWxH = 720 x 740 x 860 mm (at Z=130mm) Mill motor mount: European Chucks of 43 mm Weight: 60 kg Power Supply: 230 V / 50 Hz
