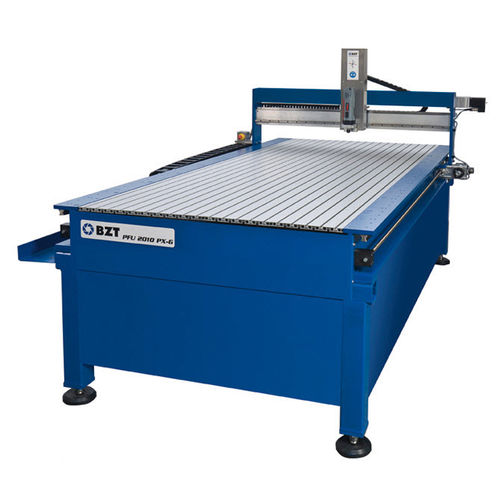

3-axis CNC milling machine PFU 1010-G
universalbridge

3-axis CNC milling machine
3-axis CNC milling machine
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
universal
Structure
bridge
X travel

1,020 mm
(40.16 in)

Y travel

1,010 mm
(39.76 in)

Z travel

135 mm
(5.31 in)

Description

Drive: optional stepper motor or servo motor Programmable resolution: 0.0025 mm Repeatability: about + / - 0.02 mm Maximum Backlash: 0.04 mm (using software adjustable to 0.000 mm) Linear guidings: Bosch Rexroth Linear guidings Y-axis 25 mm, X-and Z-axis 15 mm grinded and with hardened surface Spindles: 16 mm ball screw spindles Y-axis: Gantry Version, 2 ball screw spindles 16 x 16 mm X-axis: Aluminium 100mm x 100mm Reference switch on all axes Clamping area: approx X = 1000 mm x Y = 1000 mm Processing area: approx X = 1020 mm Y = 1010 mm and Z = 135 mm Working area: approx X = 1000 mm Y = 980 mm Passing height under Portal: approx 150 mm Passing height under Z-axis: approx 150 mm Overall dimensions with motors: LxWxH = approx 1300 x 1600 x 1600 mm Weight: 410 kg Power Supply: 230 V / 50 Hz
