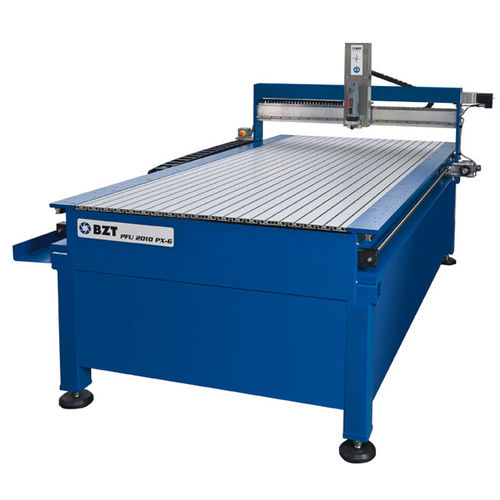

3-axis CNC milling machine PFU 2010-G

universalbridgefor aluminum

Drive: optional stepper motor or servo motor Programmable resolution: 0.0025 mm Repeatability: about + / - 0.02 mm Maximum Backlash: 0.04 mm (using software adjustable to 0.000 mm) Linear guidings: Bosch Rexroth Linear guidings Y-axis 25 mm, X-and Z-axis 15 mm grinded and with hardened surface Spindles: 16 mm ball screw spindles X-axis: Aluminium 100mm x 100mm Traversing speed step | power: Maximum working speed step | power: Reference switch on all axes clamping area: approx X = 1000 mm x Y = 2000 mm Processing area: approx X = 1020 mm Y = 1970 mm Z = 135 mm Passing height under Portal: approx 150 mm Passing height under Z-axis: approx 150 mm Overall dimensions with motors: approx 2300 x 1600 x 1600 mm Weight: 450 kg Power Supply: 230 V / 50 Hz
