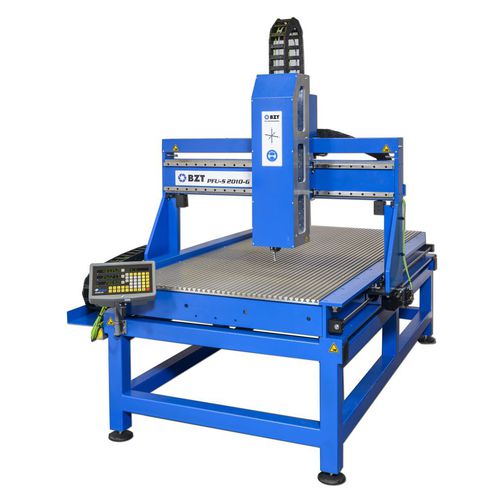

3-axis CNC milling machine PFU-S 2015-G

universalbridge

Drive: optional closed loop stepper motor or servo motor Programmable resolution: 0.0025 mm Repeatability: about + / - 0.02 mm Maximum Backlash: 0.04 mm (using software adjustable to 0.000 mm) Processing speed STEPP | SERVO: - | 12.000 mm/min. Linear guidings: Bosch Rexroth Linear guidings Y-axis 25 mm, X-and Z-axis 15 mm grinded and with hardened surface Spindles: 16 mm ball screw spindles X-axis: Steel beam 200 mm x 100 mm Y-axis: Gantry Version, 2 ball screw spindles 16 x 16 mm Reference switch on all axes clamping area: approx X = 1000 mm x Y = 2000 mm Processing area: approx X = 1020 mm Y = 2010 mm Z = 170 mm Passing height under Portal: approx 150 mm Passing height under Z-axis: approx 150 mm Overall dimensions with motors: approx 2300 x 1600 x 2300 mm Weight: 640 kg Power Supply: 230 V / 50 Hz
