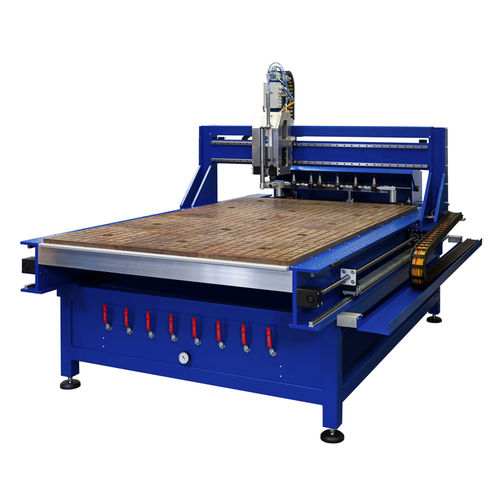

3-axis CNC milling machine PFH 4520-G

universalbridge

Drive: Servo motor 750 W Programmable resolution: 0.0025 mm Repeatability: about + / - 0.02 - 0.03 mm Maximum Backlash: 0.04 mm (using software adjustable to 0.000 mm) Linear guidings: Bosch Rexroth Linear guidings 25mm, grinded and with hardened surface Ball screw spindles: x = 16 x 16 mm, y= 25 x 10 mm, z = 16 x 5 mm X-axis: Steel Rapid traverse speed: z = about 10000 mm/min | x + y = about 12000 mm/min Driven nuts: X and Y-axis Clamping area: approx X = 2000 mm x Y = 4500 mm Processing area: approx X = 2020 mm Y = 4510 mm and Z = 170 mm Passing height under Portal: ca. 280 mm Passing height under Z-axis: ca. 250 mm Overall dimensions with motors: ca. 5000 x 2700 x 2300 mm Weight: 2900kg Power Supply: 230 V / 50 Hz
