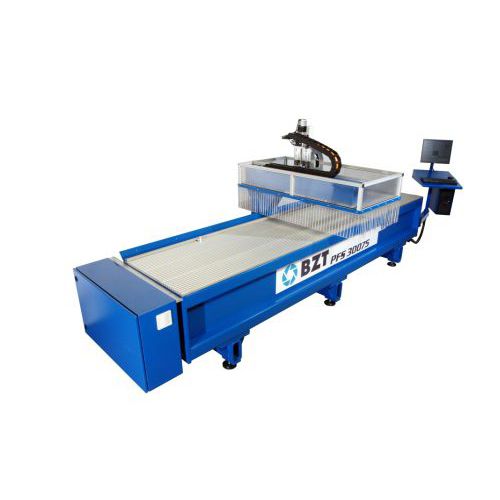

3-axis CNC milling machine PFS 30075 universalbridge
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- universal
- Structure
- bridge
- X travel
3,000 mm
(118.11 in)- Y travel
750 mm
(29.53 in)- Z travel
180 mm
(7.09 in)
Description
Drive: 3 servo motors
Repeatability: ca.0, 01 mm
Maximum Backlash: ca 0.05 mm (using software adjustable to 0.000 mm)
Linear guidings: X, Y and Z axis 25 mm grinded and with hardened surface
X- / Y- axis: 25 x 10 mm ball screw spindles with driven nut
Rapid traverse speed X + Y: about 25000 mm / min, Z about 12000 mm / min
reference switch on all axes
Processing area: approx. X = 2500 mm Y = 750 mm Z = 180 mm
Passing height under Z Portal at: 285 mm
Overall dimensions with motors: LxWxH = approx 3700 x 1600 x 2100 mm
Weight: about 2600 kg
