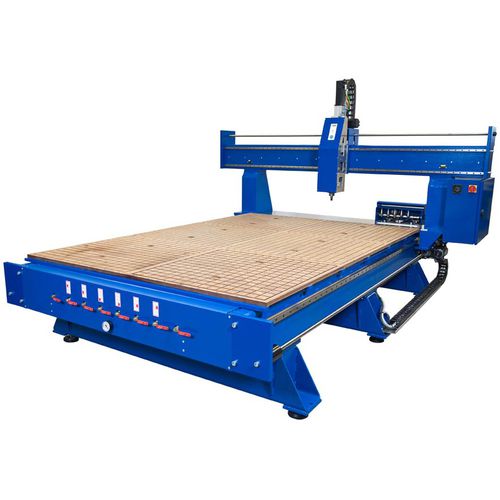

3-axis CNC milling machine PFG-S 3015 Servo

universalbridgefor aluminum

Clamping area: X = 1500 x Y = 3500 mm Available with vacuum table or aluminum T-slot Processing area X: 1500 mm Processing area Y: 3000 mm Processing area Z: 400 mm Passing height Z under portal: 500 mm Positioning speed: 30,000 mm / min Step size: 0,001 mm Repeatability: + / - 0.01 mm Calibrated positioning Backlash: max. 0.02 mm (using software adjustable to 0.000 mm) Drive X + Y-axis: driven ball screw nuts Y Linear guidings: 35 mm grinded and with hardened surface X + Z Linear guidings: 25 mm grinded and with hardened surface Reference switch: Yes, on all axles Range: to all Axis limit switches Drive: 4 servo motors Spindles: 3-point ball bearing ball screw spindles, inductively hardened (HRC 60 + / - 2) Outside dimensions: approx. 3900 x 2500 x 2400 mm Weight: 4700 kg Power Supply: 380/415 V - 50 Hz Features: CNC servo controllers, robust steel base frame, zero-backlash ball screw with driven nut, high-precision linear guidings, servo drives
