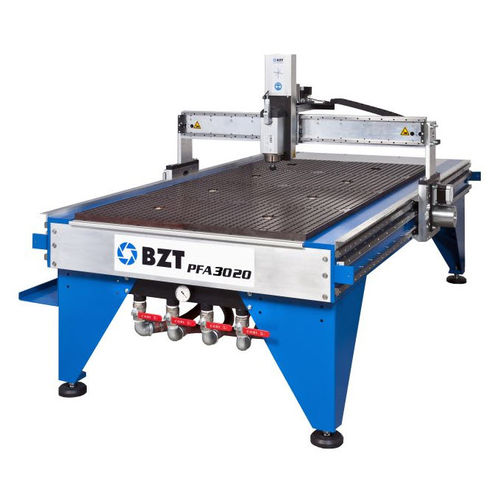

3-axis CNC milling machine PFA 3020-G universalbridge
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- universal
- Structure
- bridge
- X travel
2,050 mm
(80.71 in)- Y travel
3,050 mm
(120.08 in)- Z travel
135 mm
(5.31 in)
Description
clamping area X x Y: 2000 x 3000 mm
proecessing area X | Y | Z: X 2050 mm | Y 3050 mm | Z 135 mm
passing height Z without table ca. 200mm
processing speed approx. STEPP | SERVO: 30.000 mm/min. | N.N.
repetition speed: 0,01
ball screw spindles: Z 16 x 5 mm
rack, angle serrated: X + Y 25 mm
gantry design: yes
linear roller guides: yes
drive STEPP | SERVO: 4 x 6 Amp., Closed Loop | 4 x 750 W
outer dimensions L x W x H: ca. 3600 x 2600 x 1500 mm
weight: approx. 790 kg
power supply: 230 V / 50 Hz
