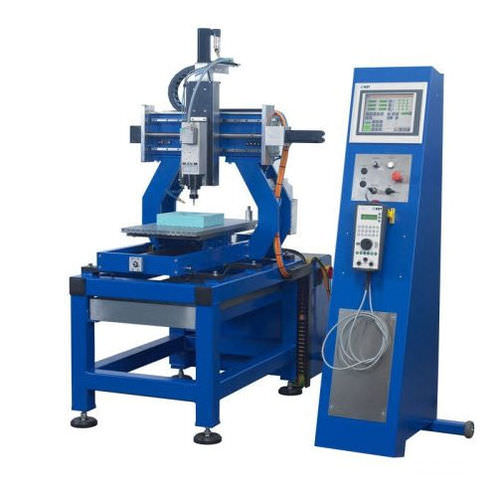

3-axis CNC milling machine PFX 500-H

universalbridge

Version: 1.0 Clamping area: ca. 600 x 375 mm Processing Area X: ca. 350 mm Processing Area Y: ca. 585 mm Processing Area Z: ca. 210 mm Passing height Z: ca. 250 mm Rapid traverse speed: step | servo: ca. 12000 mm / min. | 25000 mm / min Working speed step | servo: min ca. 10000 mm / min. | 20000 mm / min Drive step | servo: 3 x 6 Amp | 3 x 700 W Step size: 0.0025 mm Repeatability: + / -0.025 mm to + / -0.01 mm (on fixed bearing side) Positioning: calibrated Backlash: max. 0.05 mm (using software to be set to 0.00 mm) Linear guidings: Y = 25 mm, X + Z = 15 mm, ground and surface hardened Spindles: 3-point ball bearing ball screw spindles, induction hardened (HRC60 + / -2) Reference switch on all axes Outside dimensions: ca. LxWxH 1600 x 1000 x 2100 mm Weight: 700 kg
