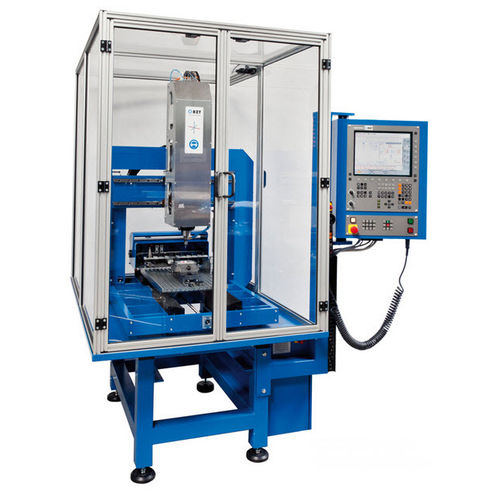

3-axis CNC milling machine PFX-700-1

universalbridge

Version: 2.0 Clamping area: ca. 680 x 375 mm Processing Area X: ca. 520 mm Processing Area: ca. 720 mm Processing Area: ca. 180 mm Passing height Z-Hub: ca. 180 mm Passing height under traverse X-axis: ca. 390 mm Rapid traverse speed: servo: ca.25000 mm / min Working speed servo: ca. 20000 mm / min Drive servo: 3 x 750 W Step size: 0.0025 mm Repeatability: + / -0.025 mm to + / -0.01 mm (on fixed bearing side) Positioning: calibrated Backlash: max. 0.05 mm (using software to be set to 0.00 mm) Linear guidings: Bosch Rexroth Y = 25 mm, X + Z = 15 mm, ground and surface hardened Spindles: 3-point ball bearing ball screw spindles Bosch, induction hardened (HRC60 + / -2) X-axis: ball screw soindles 25 mm with driven nut Reference switch on all axes Outside dimensions: approx. L x W x H - Weight: -
