3-axis CNC milling machine PFX 1500
universalbridge

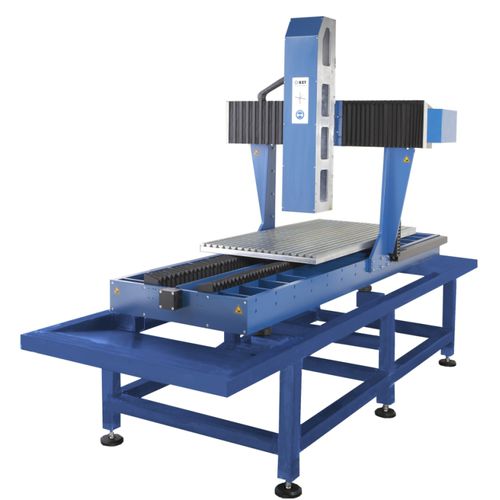

3-axis CNC milling machine - PFX 1500 - BZT Maschinenbau GmbH - universal / bridge
3-axis CNC milling machine - PFX 1500 - BZT Maschinenbau GmbH - universal / bridge
3-axis CNC milling machine - PFX 1500 - BZT Maschinenbau GmbH - universal / bridge - image - 2
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
universal
Structure
bridge
X travel

857 mm
(33.74 in)

Y travel

1,450 mm
(57.09 in)

Z travel

250 mm
(9.84 in)

Description

Version: 1.0 Clamping area: ca. 1000 x 740 mm Processing Area X: ca. 857 mm Processing Area Y: ca. 995 mm Processing Area Z: ca. 180 mm Passing height Z: ca. 250 mm Rapid traverse speed: step | servo: ca. 12000 mm / min. | 25000 mm / min Working speed step | servo : ca. 10000 mm / min. | 20000 mm / min Drive step | servo: 3 x 6 Amp | 3 x 700 W Step size: 0.0025 mm Repeatability: + / -0.025 mm to + / -0.01 mm (on fixed bearing side) Positioning: calibrated Backlash: max. 0.05 mm (using software to be set to 0.00 mm) Linear guide: Y = 25 mm, X + Z = 15 mm, ground and surface hardened Spindles: 3-point ball bearing ball screw spindles, induction hardened (HRC60 + / -2) Reference switch on all axes Outside dimensions: ca. LxWxH 2300 x 1710 x 2100 mm Weight: ca. 800 kg
