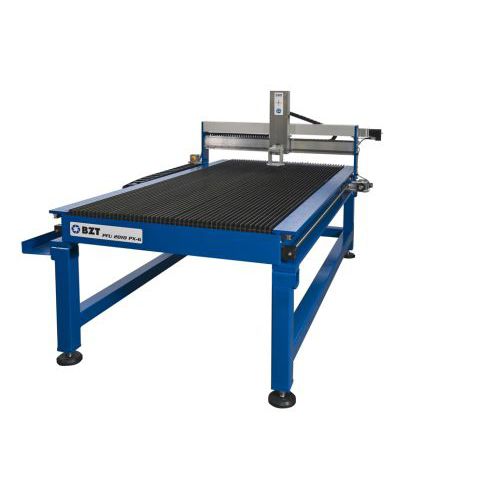

Oxyacetylene cutting machine PFU-G

for steelCNCbridge

The G-version of the PFU series for flame cutting and plasma plants, for water jet cutting or for the control cabinet production. You will get from us a BZT-CNC portal milling machine PFU -G with a preparation for the use as a plasma cutting plant, that means with control and control desk, possibly portal enhancement, swimming burner storage, a plasma laminated table, a plasma suction tub and optionally a plasma cutting plant. For professional industrial users Application fields: plasma cutting / flame cutting Clamping area surface up to X = 2000 mm x Y = 4300 mm Ball screw spindles in all axis Linear guidings and guiding carriage from Bosch Lateral parts made of steel in C-construction = increased stability Lateral guidings covered: no contamination of sensitive components The driven nut in the Y-axis serves for even better milling results PFU-G: 2 ball screw spindles in the Y-axis, each on the right and left in the portal. Example package BZT-CNC portal milling machine PFU 2010 PX G preparation for the use as a plasma cutting plant BZT control ST64.1 4-axis 5.6 A, 48 V, 6.7 A switching output, 2 x 220 V BZT control panel 1 incl. PC and 19 "TFT screen PFU-250-1000 portal enhancement for Z-axis 250 mm BZT swimming burner storage BZT PFU 2010 plasma lamellar table BZT 2010 PFU plasma suction tub Instruction in our company when picking up goods
