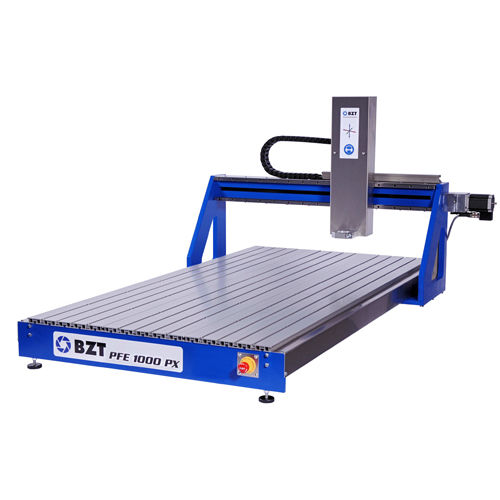

3-axis CNC milling machine PFE 1012-PX

universalbridge

Drive: 3 brand stepper motors X+Y=6 Amp, Z=4.2 Amp Programmable resolution: 0.0025 mm Repeatability: about + / - 0.01 mm (on fixed bearing side) Maximum Backlash: about 0.04 mm (using software adjustable to 0.000 mm) Linear guidings: X-and Y-axis ground and surface hardened Spindles: ball screw spindles 16 mm Rapid traverse speed: ca. 8000 mm / min Maximum operating speed: 4000 mm / min Reference switch on all axes Clamping area: X = 1250 Y = 1495 mm Processing area: X = 1205 mm Y = 1150 mm Z = 135 mm Passing height under Portal: about 210 mm Passing height Z-axis: about 195 mm Overall dimensions with motors: LxWxH: approx 1700 x 1700 x 850 mm Mill motor mount: European Chucks of 43 mm Weight: 230 kg Power supply: 230 V / 50 Hz
