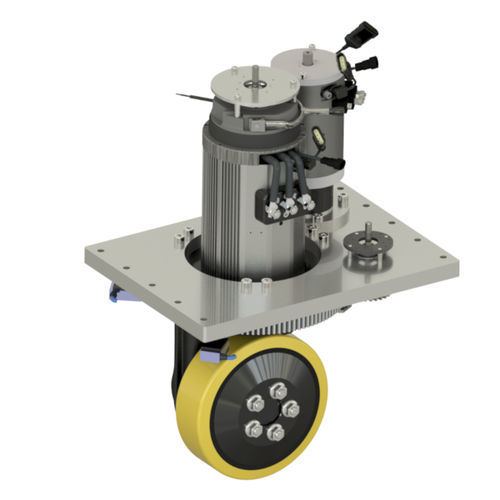

IP66 drive wheel MRT seriesheavy-duty
Add to favorites
Compare this product
Characteristics
- Protection level
- IP66, heavy-duty
- Torque
Min.: 500 Nm
(368.78 ft.lb)Max.: 1,400 Nm
(1,032.59 ft.lb)- Power
Min.: 500 W
(0.68 hp)Max.: 6,000 W
(8.16 hp)- Load
Min.: 1,000 kg
(2,204.6 lb)Max.: 3,500 kg
(7,716.2 lb)- Speed range
Min.: 8 km/h
(4.97 mph)Max.: 15 km/h
(9.32 mph)- Diameter
Min.: 230 mm
(9.06 in)Max.: 457 mm
(17.99 in)
Description
In our multi-directional vertical electric drive wheels, the traction motor is located above the wheel, thus reducing the space required for steering. Quiet and efficient, they do not impose limits on the steering angle, improving driving times. They are available with PMAC/AC/DC motors, optimised for intermittent or continuous duty use, and offer ingress protection of up to IP66. Designed for low and high voltage, they are dedicated to traction on solid terrain, both indoor and outdoor.
