Adjustable switch CS series

springsingle-poleindustrial

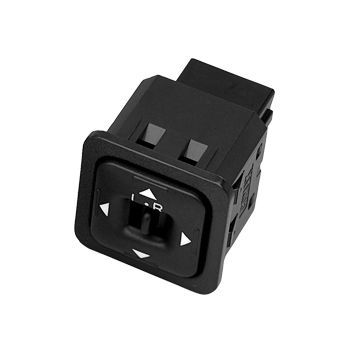

2 and 4 ways power switches for seat adjustment. Capable of handling 15A at 14VDC power, this SAMXD new version is dust proof and can offer different style of actuators, with or without spring pin for interface button tolerance management. FEATURES AND BENEFITS • Multi-directional 2 or 4 ways • Power handling for motor direct drive • IP5X • THT terminations TYPICAL APPLICATIONS • Seat adjustment module for passenger cars • Seat adjustment module for commercial vehicles • Industrial Joystick SPECIFICATIONS Contact Rating: 15A @ 14V DC Electrical Life: 30000 Cycles Jump Start: 24VDC for 1 minute Operating Temperature: -40°C to + 85°C The CS series 4-way adjustable direction switch from C&K is perfect for mirror control products in the automotive and industrial industries, where offering adjustable direction capabilities in a compact format is a must. C&K’s CS switches are reliable and long-lasting – and are made with a wire harness and connector, making it easy for designers to customize to their specifications. FEATURES AND BENEFITS • Designed for mirror control • Wire harness and connector easy to customize • 4-way adjustable directions TYPICAL APPLICATIONS • Automotive • Industrial SPECIFICATIONS Electrical Life: 10,000 cycles Insulation Resistance: 10 megohms min. @ 500 V DC Dielectric Strength: 500 V AC
