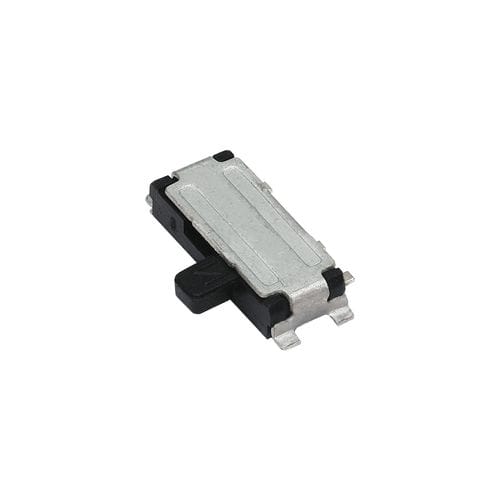

Slide switch PCM seriesSPDTlow-profileultraminiature
Add to favorites
Compare this product
Characteristics
- Type
- slide
- Number of poles
- SPDT
- Other characteristics
- low-profile, ultraminiature
- Primary current
0.3 A
- Voltage
6 V
- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 85 °C
(185 °F)
Description
Makers of computer peripherals, network products, telecommunication products and test & measurement equipment choose the PCM series ultraminiature surface mount slide switches from C&K when they need a long-lasting, low-profile switch. PCM switches are available in SPDT or SP3T models.
EATURES AND BENEFITS
• Ultraminiature surface mount
• Low profile
• SPDT & SP3T models
TYPICAL APPLICATIONS
• Computer peripherals & network products
• Telecommunication products
• Test & measurement equipment
Electrical Life:
10,000 cycles
Contact Resistance:
70 milliohms max.
Insulation Resistance:
100 megohms min. at 500 V
Dielectric Strength:
500 VAC min.
Solderability:
255ºC max. solder temperature
