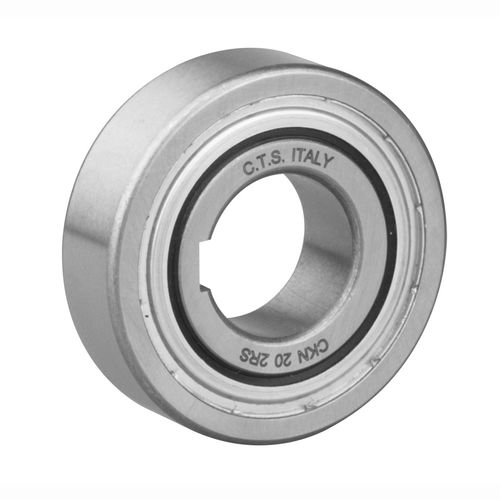

Sprag one-way clutch CKN 2RS seriesbearingindexingbackstop
Add to favorites
Compare this product
Characteristics
- Technology
- sprag
- Construction
- bearing
- Applications
- backstop, overrunning clutch, indexing
- Other characteristics
- high-speed, irreversible, self-centering
- Torque
55 Nm, 93 Nm, 130 Nm
(40.5659 ft.lb, 68.5933 ft.lb, 95.8831 ft.lb)- Diameter
47 mm, 52 mm, 62 mm
(1.85 in, 2.05 in, 2.44 in)- Rotational speed
4,200 rpm, 5,200 rpm, 6,000 rpm
(26,389.38 rad.min-1, 32,672.56 rad.min-1, 37,699.11 rad.min-1)
Description
The CKN series is a freewheel incorporating a 62.. series bearing, self-centring, grease-lubricated and comes with water protection This model is equipped with a keyway on the inner race and should be fitted on k6 tolerance shafts. Seat fitting must be carried out with N6 keying tolerance. The series is built with a C5 clearance that turns into a normal clearance after keying. The races can be glued to the shaft and the seat. In this case, the clearance remains C5.
