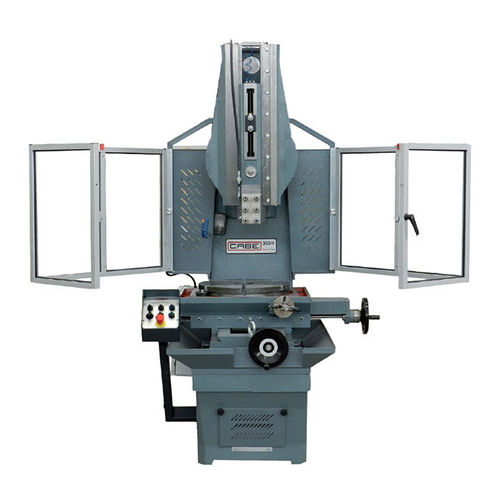

Manually-controlled slotting machine ST

The guarantee of a historic machine. A wide range of models, five different for tool stroke from 250 to 520 mm. Each model is available with two types of pieceholder tables: rectangular or swivel table with divider disk. The monolithic structure made of cast iron to ensure precision cutting with vibration absorption during machining. Technical Characteristics “V” universal tool holder block Automatic disconnection of the tool during ascent phase. Swivel table with divider disk. Electric pump and refrigeration system of tool. Right/left head tilt of approximately 20°. Slide adjusted with: Manual gearbox (model 250); Manual gearbox with electric speed control (model 350); Inverter (models 380 P – 520 P). Drive motor of the self-braking type slide. Slide guides of the axes adjusted and lubricated with automatic electric pump. Work area illuminated and protected by clear polycarbonate guard with block microswitch. Service keys and user manual supplied. Visualisation on display of Y longitudinal Axis. Visualisation on display of X transversal Axis. Visualisation on display of manual swivel table (if provided).
