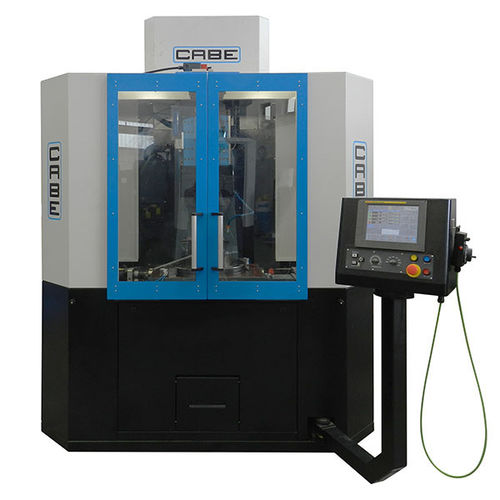

CNC slotting machine ST3

3-axis

A modern and technological range, characterized by 3 controlled axes and various models with different stroke of the tool. Comes as standard with the innovative tool-holder block with high repeatability thanks to which the tools are always positioned at the centre of the hole. The FANUC 0i-MF control with intuitive graphical and customized interface allows the programming of gradual incremental feeds. Technical characteristics CFANUC control, 0i-MF touch screen 10.4” model. Controlled swivel pieceholder table (C axis). Automatic disconnection of the tool during ascent phase. Minimal tool cooling system (alternatively, neat oil on request). Models with manual swivel table: divider disk. The controlled axes are driven by brushless motors and managed directly by the control; the movement of the controlled axes in manual mode is ensured by a remote control handwheel. Preloaded rectified command ball recirculation screws. The linear axes slide on recirculating roller guides to ensure dynamicity and precision of the movements, preloaded with centralized forced lubrication. Tool holder with high repeatability, patented Cabe: with this system the tools are always at the centre of the hole. Functions only with the line of Cabe tools. Practical and removable chip collection tank, located below the table. Safety around the illuminated work area is guaranteed by practical guards (2 doors) that at the same time facilitate the positioning of the pieces and prevent accidents. Service keys and user manual supplied. ”V” universal tool holder block. Tower signaling machine status. ”Fine” adjustment of the tilting head with handwheel. Pneumatic air blow kit for cleaning blind holes.
