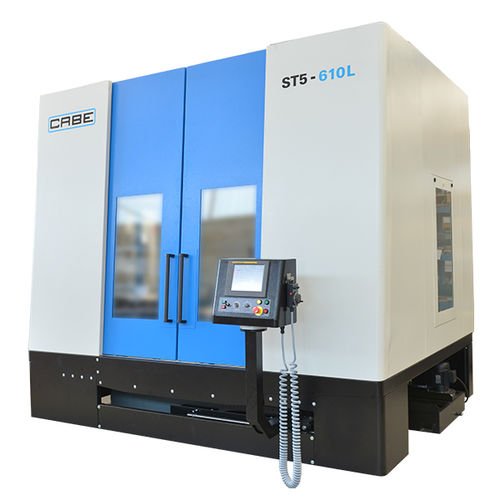

CNC slotting machine ST5

5-axis

New design, cutting-edge technology. The newest Cabe model promises the implementation of ground-breaking articulated machining. The fifth axis, introduced expressly for the models with elevated stroke of the tools, consents to easily modify the distance between the table and the underhead allowing a fast change of the machining. With great simplicity in its design, also supported by a constant cutting speed, it allows the execution of complex figures, which until now has not been possible using traditional models. The machine is ideal for the machining of particular big pieces. Performance & Flexible Designed to be particularly flexible and performing, the ST5 CNC is equipped with Fanuc control and motors. All of the processing elements (tools, origins, cycles composed of queued processing) are saved in organized libraries inside the control and guarantee quick machine set-up. The movement of the head, controlled by Fanuc brushless motors, is done with the control, that keeps in memory the start position and repeats it automatically if needed. Characteristics FANUC control, 0i-MF touch screen 10.4” model. Controlled swivel pieceholder table (C axis). Automatic disconnection of the tool during ascent phase. Net oil cooling system. The controlled axes are driven by brushless FANUC motors. The controlled axes are managed directly by the controller and the movement in manual mode is guaranteed by a remote handwheel. Direct reading of the position on all linear axes. The linear axes slide on recirculating roller guides to ensure dynamicity and precision of the movements, preloaded with centralized forced lubrication.
