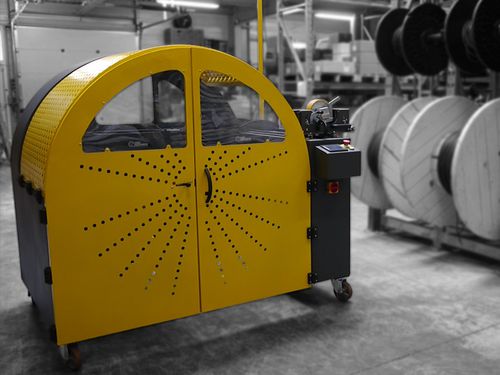

Cable winder ECO-COCCI - trancannage manuel

motorized

For drum winding (max 400kg and Ø 1050mm) To make coils Cables max Ø 50 mm Industry - Distribution - Logistics : Safety First - A real crankcase, not a simple bar, for protection but doesn’t hinder either: when open the work space is clear - Crankcase on the gavette and on the cable drum (winding impossible in open position) - The operator remains next to the machine, outside the danger zone between the unwinder drum and the machine. - Torque limiter (instant stop in the event of unwinding drum lockout) - Gradual start - Double synchronous «dead man» control - Emergency stop - ECOlogic: for raising and lowering the drum, the hydraulic jack (risk of leakage and maintenance requirement) is replaced by an electric jack - ECOnomic: excellent ratio quality - safety - price Drum winding Maximum diameter 1.050 mm (CBN) Maximum width: 600 mm (with central hole Ø 82mm) Maximum weight: 400 kg Diameter of the drum shaft: 40 mm Coiling device to make coils - Adjustable coiling device - Coiling device with quick adjustment -Mobile machine -Measuring device on a cross-winding bench M50 measuring device for cable diameter max. 50 mm. - Touch Screen - Motorization MANUAL CROSSWINDING Version Thanks to the handle placed on the measuring device, the operator performs the back and forth movement manually. Model without coiling device : code E3050
