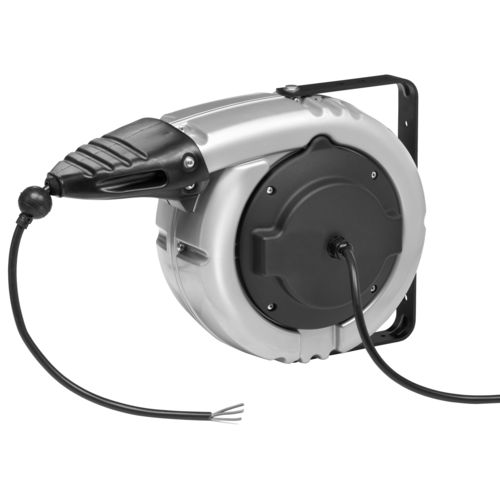

Cable reel ALU 700S/65

self-retractingfixedswiveling

20 industrial automatic cable reels' range - From 1 to 8 condcutors - From 1 mm² to 16 mm² - Until 26 meters IP65 Aluminium case with rubber protective bellows. Swivelling bracket. Detent ratchet every 50 cm, easy to insert if you want the cable to be in permanent traction. Horizontal and vertical use. If vertical use, free option mandatory which turns the swivelling bracket into a fixed one (code ERXP6A7V). Some models have a reinforced collector. The indicated length includes 2 meters outside the reel. Supplied without power supply cable. In option for 3G1,5² and 3G2,5² models: - Single extension cord kit (mounted): Input, cable and 2P+T male jack; output, 2P+T female jack with check valve (code ERXP1) - Triple extension cord kit (mounted): In input, cable and 2P+T male socket; in output, 2P+T triple socket with valve (code ERXP3) CE certified. Double grounding contact. Collector isolation voltage 2.5 kV. Roller cable guide device. Brass ring collector and brushes. Use temperature - 5 °C/+50°C.
