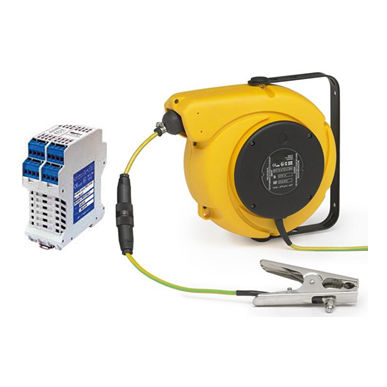

Cable reel ERATX1421 series

self-retractingfixedwall-mounted

Control unit ( ATEX case in option ) +ATEX automatic cable reel + ATEX clamp For the ATEX certification, the whole system should be ordered. Ground control unit EAD009 - Supplied with a connection input cable with the control unit and the 5 meters automatic cable reel (longer length upon request) - Without the option, the control unit is not located on a safety zone and therefore the automatic cable reel should be put within the security zone Using a cable different from the one originally supplied will invalidate the ATEX approval of the system Whole systems Unit control (ATEX case in option) (+ ATEX automatic cable reel + ATEX clamp) - Delivred with 5 meters cable in input - Marking according to the directive CE94/9/CE II 2G / II 2D CE94/9/CE II 2(1)G Ex ia [ia Ga) IIC T6 Gb - EC type examination certificate BVS 09 ATEX E 156 X IECEx BVS 10.0024 X - Other automatic cable reels are the ones of the 7000, XF and PC ranges
