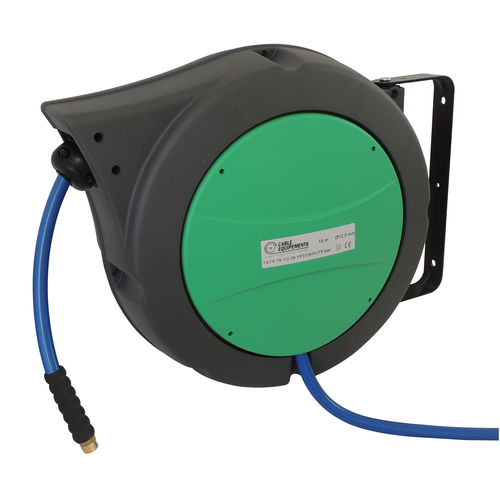

Hose reel YP300KPU series

for waterfor airretractable

Industrial quality - European manufacturing KPU hose Exclusive model Strong : resistant to abrasion and pressure No memory effect : no spirals Extremely flexible : easy to manipulate with all conditions of use (from -5°C to +50°C) No throttling : even if kinked, it does not close the air duct For air and water Max pressure : 15 bar Equiped with end hose fitting 1,50 meter incoming hose Technopolymer casing Swivelling bracket Removable ratchet In case of vertical use (reel on the ceiling), free on demand mandatory option, to transform the swivelling bracket into a fixed bracket (code ERXVA3P3) Length 10 meters - Interior hose Ø 8mm (5/16") - non ATEX - blue KPU - Max pressue 15 bar - End hose fitting 1/4" M BSP - Dimensions H290 x l380 x P160 mm - Weight 3,35 kg - model YP308KPU - Code Y-10-5/16-20-YP308KPU Length 16 meters - Interior hose Ø 10mm (3/8") - non ATEX - blue KPU - Max pressue 15 bar - End hose fitting 3/8" M BSP - Dimensions H380 x l490 x P210 mm - Weight 6,30 kg - model YP310KPU - Code Y-16-3/8-20-YP310KPU Length 16 meters - Interior hose Ø 12,5mm (1/2") - ATEX - blue KPU - Max pressue 15 bar - End hose fitting 1/2" M BSP - Dimensions H460 x l565 x P235 mm - Weight 8,70 kg - model YP312KPU - Code YATX-16-1/2-20-YP312KPU
