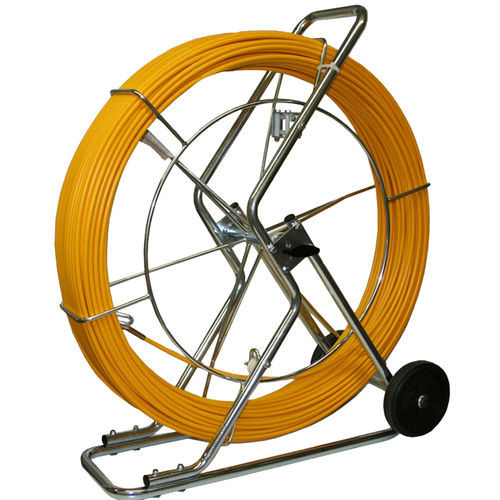

Fiberglass cable puller SUNNY FV5

Fiberglass pulling rods are the most efficient way to pull cables, or ropes, into underground conduit. The fiberglass of our SUNNY® range is of high quality. Its high resistance to pushing and pulling allows it to slip into all ducts. End caps firmly fixed to the fiberglass have a high resistance to tearing. The front head has a double function: - guide head, thanks to its ogive shape - eyelet, for attaching the cables to be pulled. Time saving: no end cap to change. The structure, designed to work on construction sites, have a tubular steel structure, robust and stable. An integrated brake prevents the fiber from unwinding from the basket by its own tension. 6 lengths to choose from: from 40 meters to 150 meters High performance fiberglass diameter 9 mm Breaking force: 40 kN High security fixation of the ends: drilling and pin + gluing. Resistance of end pieces to tearing: 10 kN Front end: M12 threaded end cap + Ø 25 mm aluminum head, dual function (guide head and pulling eyelet) + shackle (bolt Ø 10 mm) Rear end: M12 threaded end cap High quality frame in galvanized steel, diameter 750 mm. Equipped with 2 wheels. Brake by central ergonomic plastic handle. Fiber guide system.
